Determining the correct load limit

Mercedes-Benz GL-Class / Mercedes-Benz GL-Class Owners Manual / Wheels and tires / Loading the vehicle / Determining the correct load limit

Step-by-step instructions

The following steps have been developed as required of all manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the "National Traffic and Motor Vehicle Safety Act of 1966".

Step 1: Locate the statement "The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs." on your vehicle’s Tire and Loading Information placard.

Step 2: Determine the combined weight of the driver and passengers that will be riding in your vehicle.

Step 3: Subtract the combined weight of the driver and passengers from XXX kilograms or XXX lbs.

Step 4: The resulting figure equals the available amount of cargo and luggage load capacity. For example, if the "XXX" amount equals 1,400 lbs and there will be five 150 lbs passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (1,400 - 750 (5 x 150) = 650 lbs).

Step 5: Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in step 4.

Example: steps 1 to 3

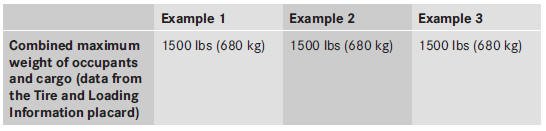

The following table shows examples on how to calculate total and cargo load capacities with varying seating configurations and number and size of occupants. The following examples use a maximum load of 1,500 lbs (680 kg). This is for illustration purposes only. Make sure you are using the actual load limit for your vehicle stated on your vehicle's Tire and Loading Information placard  .

The greater the combined weight of the occupants, the lower the maximum luggage load.

Additional information when towing a trailer  .

Step 1

Step 2


Step 2

Step 3


Step 3

Vehicle identification plate
