Important safety notes

Only use fuses that have been approved for WARNING
Only use fuses that have been approved for Mercedes-Benz vehicles and that have the correct fuse rating for the systems concerned. Do not attempt to repair or bridge faulty fuses. Using fuses that have not been approved or attempting to repair or bridge faulty fuses could cause the fuse to be overloaded and result in a fire. Have the cause traced and rectified at a qualified specialist workshop.

The fuses in your vehicle serve to close down faulty circuits. If a fuse blows, all the components on the circuit and their functions stop operating.

Blown fuses must be replaced with fuses of the same rating, which you can recognize by the color and value. The fuse ratings are listed in the fuse allocation chart.

If a newly inserted fuse also blows, have the cause traced and rectified at a qualified specialist workshop, e.g. an authorized Mercedes-Benz Center.

Only use fuses that have been approved
Only use fuses that have been approved for Mercedes-Benz vehicles and which have the correct fuse rating for the system concerned. For the fuse boxes in the engine compartment and under the rear bench seat, only use fuses with the suffix "S".

Otherwise, components or systems could be damaged.

Before changing a fuse

Ц Park the vehicle and apply the electric parking brake.

Ц Switch off all electrical consumers.

Ц Remove the SmartKey from the ignition lock.

The fuses are located in various fuse boxes: - fuse box on the front-passenger side of the dashboard
- fuse box in the engine compartment on the right-hand side of the vehicle, when viewed in the direction of travel - fuse box under the rear bench seat

The fuse allocation chart is located in the fuse box under the rear bench seat.

Dashboard fuse box

Do not use a pointed object such as a
Do not use a pointed object such as a screwdriver to open the cover in the dashboard. You could damage the dashboard or the cover.

Ц To open: pull cover 1 outwards in the


Ц To open: pull cover 1 outwards in the direction of the arrow and remove it.

Ц To close: clip in cover 1 at the front of the dashboard.

Ц Fold cover 1 inwards until it engages.

Fuse box in the engine compartment

Ц Open the hood.

Ц Remove any existing moisture from the


Ц Remove any existing moisture from the fuse box using a dry cloth.

Ц To open: open clamps 2.

Ц Fold cover 1 upwards in the direction of the arrow and remove it.

Make sure that no moisture can enter the
Make sure that no moisture can enter the fuse box when the cover is open.

Ц To close: check whether the seal is lying correctly in cover 1.

Ц Insert cover 1 into the retainers at the side of the fuse box.

Ц Fold down cover 1 and close clamps 2.

The cover must be positioned properly.
The cover must be positioned properly.

Moisture or dirt could otherwise impair the operation of the fuses.

Ц Close the hood.

Fuse box under the rear bench seat

Ц Fold the right-hand rear bench seat forward.

Ц To open: lift and fold back carpet 1 in the


Ц To open: lift and fold back carpet 1 in the direction of the arrow.

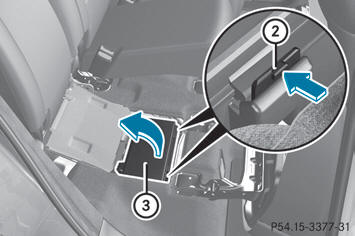

Ц Release clamps 2 by pressing them in the


Ц Release clamps 2 by pressing them in the direction of the arrow.

Ц Fold cover 3 up in the direction of the arrow and remove it.

Make sure that no moisture can enter the
Make sure that no moisture can enter the fuse box when the cover is open.

The fuse allocation chart is located under
The fuse allocation chart is located under cover 3.

Ц To close: insert cover 3 at the side of the fuse box into the retainers.

Ц Fold down cover 3 until clamps 2 engage audibly.

Ц Fold the right-hand rear bench seat back.
